ASTM A334 Gr.1 Heat Exchanger Steel Tube  Low Temperature Cold Drawing Seamless Tube

ASTM A334 Gr.1 Heat Exchanger Steel Tube Low Temperature Cold Drawing Seamless Tube

Product Details:

Place of Origin: Changzhou
Brand Name: Joyruns
Certification: ISO9001
Model Number: 25.4*2.77

Payment & Shipping Terms:

Minimum Order Quantity: 2Tons
Packaging Details: plastic packing, end caps, wooden box packing
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 2000Tons/Month
Get Best Price Contact Now

Detail Information

OD Size: 6mm To 114.3mm Thickness: 1mm To 20mm
Standard: DIN2391, EN10305, EN10216, EN10210 Material: ST35, ST45, ST52
Type: Seamless Cold Drawning Precision Tube Delivery State: +N, +NBK,+C,+BKS,+GBK

Product Description

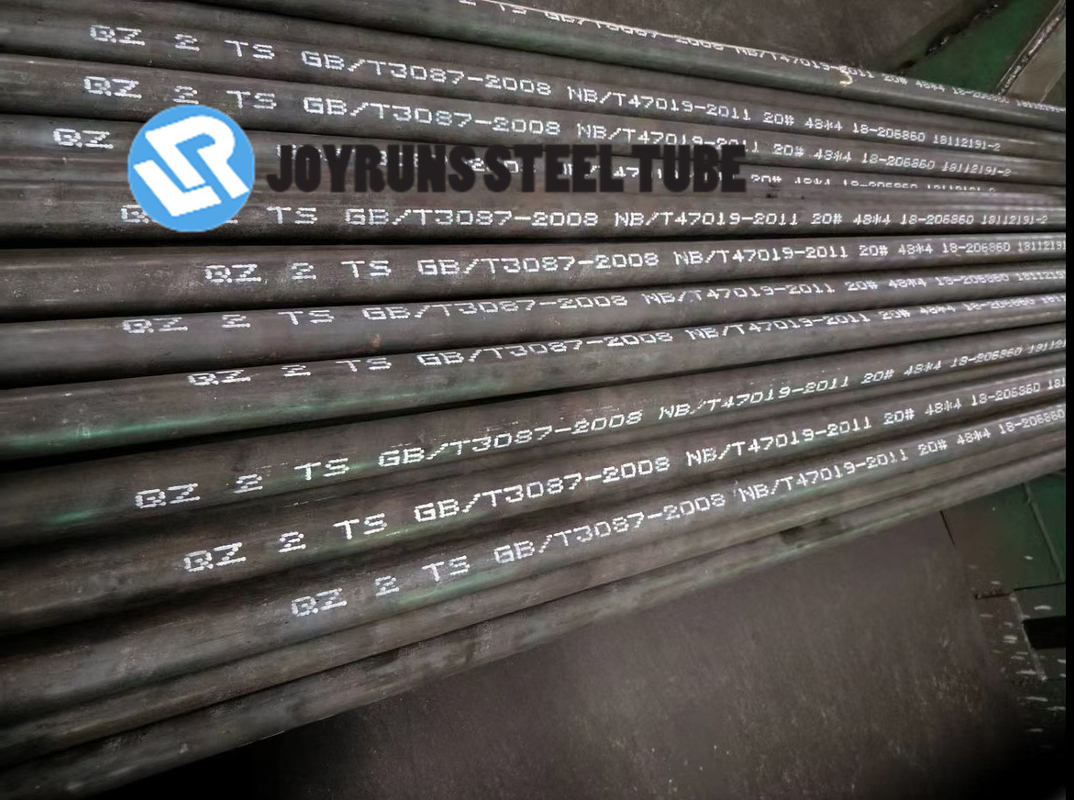

ASTM A334 Gr.1 Low-Temperature cold drawing seamless tube

ASME SA 334 Grade 1 Carbon Steel Seamless Tubes are Medium Carbon Steel Tubes with max 0.30 % carbon content with a combination of 0.40 – 1.06 % manganese. These Tubes are most commonly used for general purpose applications worldwide. ASME SA 334 Grade 1 Tubes are ductile and strong Tubes with long-wearing properties. These Tubes are manufactured as per ASME Specification and are commercially referred to as carbon steel Tubes.



ASME SA / ASTM A334 Low-Temperature Pipe Chemical Composition :



C, %

Mn, %

P, %

S, %

0.30 max

0.40-1.06

0.025 max

0.025 max





A334 Grade 1 Seamless Pipes and Tubes Mechanical properties:

Tensile Strength , MPa8

Yield Strength, MPa

Elongation, %

Hardness, HB

380 min

205 min

35 min

163 max





Equivalent Designation

DIN

EN

BS

NFA

ASTM

ASME

EN P215NL Grade 10217-4

ASTM A334 Grade1

ASME SA 334 Grade 1





ASTM A334 Gr.1 Heat Exchanger Steel Tube  Low Temperature Cold Drawing Seamless Tube 0  ASTM A334 Gr.1 Heat Exchanger Steel Tube  Low Temperature Cold Drawing Seamless Tube 1  ASTM A334 Gr.1 Heat Exchanger Steel Tube  Low Temperature Cold Drawing Seamless Tube 2



ASTM A334 Gr.1 Heat Exchanger Steel Tube  Low Temperature Cold Drawing Seamless Tube 3  ASTM A334 Gr.1 Heat Exchanger Steel Tube  Low Temperature Cold Drawing Seamless Tube 4  ASTM A334 Gr.1 Heat Exchanger Steel Tube  Low Temperature Cold Drawing Seamless Tube 5



ASTM A334 Gr.1 Heat Exchanger Steel Tube  Low Temperature Cold Drawing Seamless Tube 6
