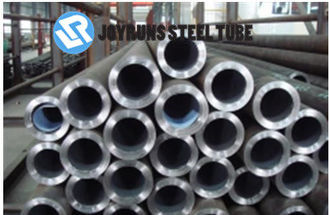

ASTM Heat Exchanger Steel Tube A192M Heavy Wall Seamless Steel Tubes High Pressure

Place of Origin CHANGZHOU, CHINA
Brand Name Joyruns
Certification ISO9000
Model Number 6mm to 137mm
Product Details
OD. Range:
6mm – 137mm
Wall Thickness:
1mm-20mm
Length:
Max Length 12M
Type:
Seamless Boiler Tube/heat Exchanger Tube
Standard:
ASTM A192
Technique:
Cold Drawing
High Light:

137mm Heat Exchanger Steel Tube

,

A192M Heat Exchanger Steel Tube

,

20mm heavy wall seamless pipe

Product Description

ASTM A192M Heavy Wall High-pressure seamless steel boiler tubes



This specification covers minimum-wall thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus. Tubes shall be made by the seamless process and shall be cold drawn. Heat and product analysis shall be performed wherein steel materials shall conform to required chemical compositions of carbon, manganese, phosphorus, and sulfur. The steel materials shall also undergo hardness test, flattening test, flaring test, flange test, and hydrostatic test.



The ASTM A 192M / ASME SA-192M belongs to the carbon seamless tubes, which is specially designed for high, middle, low-pressure purpose in seamless carbon steel boilers and as superheater tubes.



Grade and Chemical Composition ( % ):



Chemical Composition

C

Mn

P≤

S≤

Si≤



0.06-0.18

0.27-0.63

0.035

0.035

0.25



Mechanical properties



Yield Strength (Mpa) Tensile Strength (Mpa) Elongation (%)
≥180 ≥325 ≥35



Tolerance



OD In (mm) + - WT In(mm) + -
< 1(25.4) 0.10 0.10 ≤ 1.1/2(38.1) 20% 0
1 to 1.1/2(25.4 to 38.1) 0.15 0.15 > 1.1/2(38.2) 22% 0
> 1.1/2 to < 2(38.1 to 50.8) 0.20 0.20
2 to < 2.1/2(50.8 to 63.5) 0.25 0.25
2.1/2 to < 3(63.5 to 76.2) 0.30 0.30
3 to 4(76.2 to 101.6) 0.38 0.38
> 4 to 7.1/2(101.6 to 190.5) 0.38 0.64
> 7.1/2 to 9(190.5 to 228.6) 0.38 1.14



ASTM Heat Exchanger Steel Tube A192M Heavy Wall Seamless Steel Tubes High Pressure 0  ASTM Heat Exchanger Steel Tube A192M Heavy Wall Seamless Steel Tubes High Pressure 1  ASTM Heat Exchanger Steel Tube A192M Heavy Wall Seamless Steel Tubes High Pressure 2



ASTM Heat Exchanger Steel Tube A192M Heavy Wall Seamless Steel Tubes High Pressure 3  ASTM Heat Exchanger Steel Tube A192M Heavy Wall Seamless Steel Tubes High Pressure 4  ASTM Heat Exchanger Steel Tube A192M Heavy Wall Seamless Steel Tubes High Pressure 5



ASTM Heat Exchanger Steel Tube A192M Heavy Wall Seamless Steel Tubes High Pressure 6
