19.05*2.11mm ASTM B111 C44300 , Seamless Admiralty Brass Heat Exchanger Pipes Tubes

Place of Origin CHANGZHOU, CHINA
Brand Name Joyruns
Certification ISO9000
Model Number 5mm to 200mm
Product Details
Type:
Admiralty Brass Seamless Tubes Tubing
OD. Range:
10mm – 168mm
Wall Thickness:
1mm-36mm
Length:
Max Length 24M
Standard:
JIS H3300 /ASTM B111/SAME B111
Grade:
C4430T/C44300
High Light:

ASTM B111 C44300

,

19.05*2.11mm Heat Exchanger Pipe

,

24M Heat Exchanger Pipe

Product Description

ASTM B111 C44300 Seamless Admiralty Brass Pipes and Tubes



Brass refers to a broad range of copper-zinc alloys comprising a variety of properties such as ductility, strength, hardness, color, machinability, wear-resistance, antimicrobial, corrosion-resistance, and electrical and thermal conductivity. UNS C44300 brass alloys are one of the types of brass, which also are known as admiralty and arsenical brass. The following datasheet will provide more details about UNS C44300 brass alloys.



ASTM B111 ASME SB 111 C44300 Admiralty Brass is ideal for heat exchanger tubes. Normally made to order to meet engineering requirements, you will find this alloy oftentimes used in oil and gas applications that also require its non-corrosive properties. C44300 and C68700 have good corrosion resistance.



Specifications:


Material Designation


      Corresponding Material Symbol


GB/T8890

ASTM B111

BS2871

JIS H3300

DIN1785




Copper-Nickel






BFe10-1-1

C70600


CN102


C7060


CuNi10Fe1Mn


BFe30-1-1


C71500


CN107


C7150


CuNi30Mn1Fe


(BFE30-2-2)


C71640


CN108


C7164


CuNi30Fe2Mn2


BFe5-1.5-0.5)

C70400

-

-

-

B7

-

-

-

-


Aluminium Brass

HAL77-2

C68700


CZ110


C6870


CuZn20AL2



Admiralty Brass


HSn70-1

C44300


CZ111


C4430


CuZn28Sn1




Boric Brass

Hsn 70-1 B

-

-

-

-

Hsn 70-1 AB

-

-

-

-


Arsenical Brass

H68A

-

CZ126

   -

-




STANDARD
GRADE

ASTM B 111
C44300

BS 2871 / PART 3
CZ 111 (TA)

DIN 17660/1785
CuZn28Sn1

NFA 51102
CuZn29Sn1

JIS H3300
4430 (T)

Cu 70,0 - 73,0 70,0 -73,0 70,0 - 72,5 70,0 - 73,0 70,0 - 73,0
Sn 0,90 - 1,20 1,00 - 1,50 0,90 - 1,30 0,90 - 1,20 0,90 - 1,20
Pb 0,07 max. 0,07 max. 0,07 max. 0,07 max. 0,07 max.
Ni - - 0,10 max. - -
Fe 0,06 max. 0,06 max. 0,07 max. 0,06 max. 0,06 max.
Zn Rem. Rem. Rem. Rem. Rem.
As 0,02 - 0,06 0,02 - 0,06 0,02 - 0,035 0,02 - 0,06 0,02 - 0,06
P - - 0,01 max. - -
Mg - - 0,005 max. - -
Mn - - 0,10 max. - -
Total Impurities - 0,30 max. Others Total 0,03 max. -
Yield Strength 105 min. (061) - 140 - 220 (F36) - -
N/mm2 - - 100 - 170 (F32) - -
Tensile Strength 310 min. (061) - 360 min. (F36) - 314 min.
N/mm2 - - 320 min. (F32) - -
Elongation (%) - - 45 min. (F36) - 30 min.
Hardness Hv5 - 80 - 105 - 80 - 120 -
Grain Size (mm) 0,010 - 0,045 0,050 max. 0,010 - 0,050 0,010 - 0,045 0,010 - 0,045



Mechanical Properties*
Form Temper Temper Code Tensile Strength
(KSI)
YS-0.5% Ext
(KSI)
Elongation
(%)
Rockwell F scale Rockwell 30T scale Torsion Modulus
(KSI)
Izod
(ft-lbs)
Section Size
(in)
Plate As Hot Rolled M20 48 Typ 18 Typ 65 Typ 70 Typ   5.8 Typ 60 Typ 1
Strip Light Anneal O50 48 Typ 14 Typ 62 Typ         0.04
  Soft Anneal O60 45 Typ 13 Typ 69 Typ         0.04
Tube Nominal Grain Size 0.025 mm OS025 53 Typ 22 Typ 65 Typ 75 Typ 37 Typ
Wire Nominal Grain Size 0.015 mm OS015 55 Typ   60 Typ         0.08
* Measured at room temperature, 68°F (20°C).

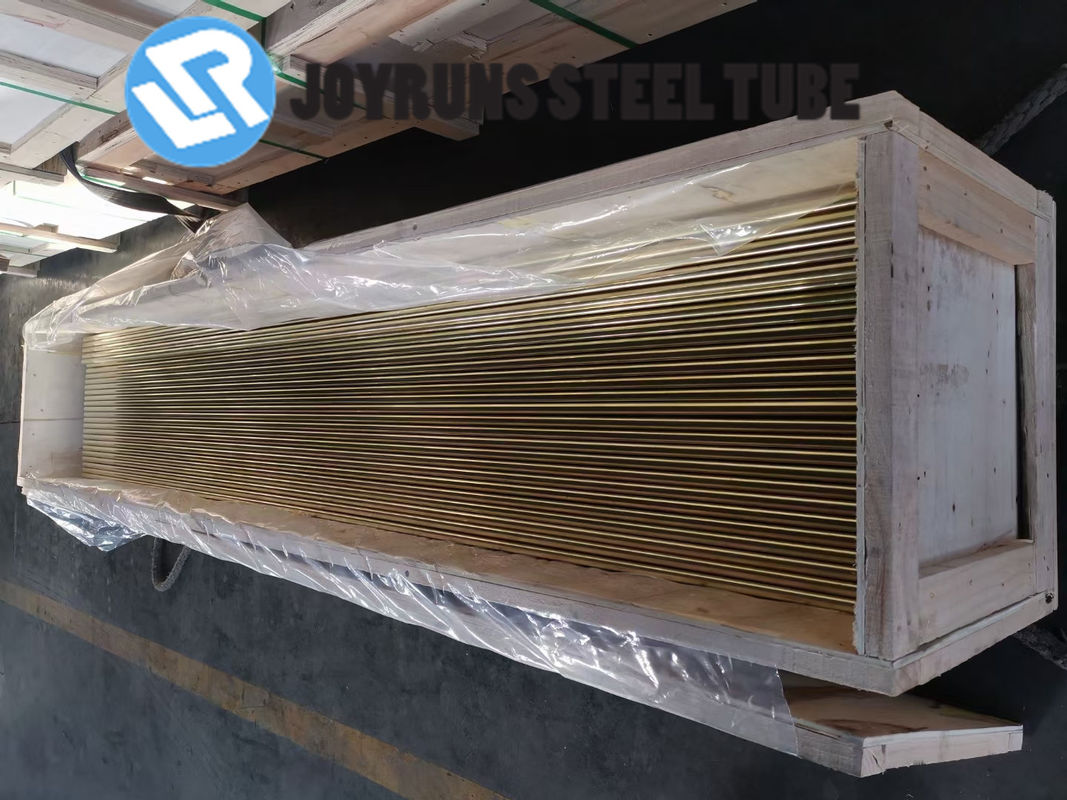

19.05*2.11mm ASTM B111 C44300 , Seamless Admiralty Brass Heat Exchanger Pipes Tubes 0  19.05*2.11mm ASTM B111 C44300 , Seamless Admiralty Brass Heat Exchanger Pipes Tubes 1  19.05*2.11mm ASTM B111 C44300 , Seamless Admiralty Brass Heat Exchanger Pipes Tubes 2
