Seamless Boiler Tubes
>
|
|
| Place of Origin | CHANGZHOU, CHINA |
| Brand Name | Joyruns STEEL |
| Certification | ISO9000 |
| Model Number | 1/2” to 16” |

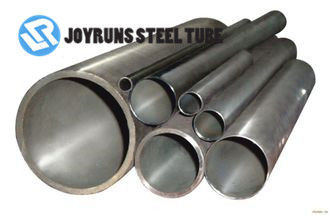

ASTM A213 T11 Heavy Wall cold drawing seamless Boiler tube
T11 material detail was Seamless Cold-Drawn Intermediate Alloy-Steel Heat-Exchanger and Condenser Tubes.
T11 Alloy Steel Tube (SA213 T11, Chrome-Moly) is a consistent ferritic Alloy Steel Tube for high-temperature administration. These T11 materials including SA213 T11 Seamless Tube and Alloy Steel T11 Tube are reasonable for high-temperature application, for example, twisting, flanging, and comparable framing activities, and for combination welding in the power business and petro-substance plants.
SA213 T11 Alloy Steel Tubing is otherwise called ASTM A213 T11 chrome-moly tube in view of the compound cosmetics of Molybdenum (Mo) and Chromium (Cr). Molybdenum keeps up the quality of ASME SA213 T11 square cylinder just as far as possible, protection from wear, sway characteristics, and hardenability. Moly is the best single added substance that upgrades the high temperature creeps quality of SA213 T11 Tubes Suppliers.
ASME SA213 Alloy Steel T11 Seamless Tubes Equivalent Standards
|
GRADE |
UNS |
TRADE NAME |
|
T11 |
K11597 |
1 1/4 Chrome |
Chemical Composition of Grade T11 Alloy Steel Tubes
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % |
| 0.15 max | 0.30-0.60 | 0.025 | 0.025 max | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
Mechanical Properties of ASTM A213 Alloy Steel UNS K11597 Tubes
| Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
| 415 min | 205 min | 30 min | 179 max |
Tolerance of ASTM A213 Alloy Steel Gr T11 Tubes
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
