Product Details:

Place of Origin: CHANGZHOU, CHINA
Brand Name: Joyruns
Certification: ISO9000
Model Number: 6mm --137mm

Payment & Shipping Terms:

Minimum Order Quantity: 5 tons per size
Price: Negotiable
Packaging Details: Plastic packing, oiling, wooden box
Delivery Time: 30DAYS
Payment Terms: TT OR LC
Supply Ability: 5000T PER MONTH
Get Best Price Contact Now

Detail Information

OD. Range: 6mm – 137mm Wall Thickness: 1mm-20mm
Length: Max Length 12M Type: Seamless Boiler Tube
Technique: Cold Drawing, Cold Rolled Standard: JIS3454/JIS3455/JIS3456/JIS3461
High Light:

JIS 3454 Seamless Boiler Tubes

,

STPG370 Seamless Boiler Tubes

,

STPG370 410

Product Description

JIS3454 / JIS3455 / JIS3456 / JIS3461

JIS G3454 carbon steel pipes are used for pressure conditions at a limited maximum temperature of 350℃. If you require higher pressure pipes shall consider JIS G 3455 standard. JIS G3454 Steel pipe can be manufactured into seamless steel pipe or electric-resistance welded steel tubes, the purchaser may designate the quality requirements on hot finished or cold finished state.



Specifications:



Grade and Chemical Composition ( % )



Standard

Grade

C

Si

Mn

P

S

JIS G3454

STPG 370

≤0.25

≤0.35

0.30-0.90

≤0.040

≤0.040

STPG 410

≤0.30

≤0.35

0.30-1.00

≤0.040

≤0.040

JIS G3455

STS 370

≤0.25

0.10-0.35

0.30-1.10

≤0.035

≤0.035

STS410

≤0.30

0.10-0.35

0.30-1.40

≤0.035

≤0.035

STS480

≤0.33

0.10-0.35

0.30-1.50

≤0.035

≤0.035

JIS G3456

STPT 370

≤0.25

0.10-0.35

0.30-0.90

≤0.035

≤0.035

STPT 410

≤0.30

0.10-0.35

0.30-1.00

≤0.035

≤0.035

STPT 480

≤0.33

0.10-0.35

0.30-1.00

≤0.035

≤0.035





mechanical property



Standard

Grade

Tensile strength (Mpa)

Yield strength (Mpa)

JIS G3454

STPG 370

≥215

≥370

STPG 410

≥245

≥410

JIS G 3455

STS 370

≥215

≥370

STS 410

≥245

≥410

STS 480

≥275

≥480

JIS G 3456

STPT 370

≥215

≥370

STPT 410

≥245

≥410

STPT 480

≥275

≥480





Tolerances on Outside Diameter and Wall Thickness:

Division Tolerances on outside diameter Tolerances on wall thickness
Hot-finished seamless steel pipe 40 A or under 0.5mm Under 4mm
50A or over up to and incl. 125 A 1%

+0.6mm



-0.5mm



4mm or over



+15%



-12.5%

150A 1.6mm
200A or over 0.8%
For the pipe of nominal size 350 A or over, the tolerances on outside diameter may be determined by the measurement of the length of circumference. In this case, the tolerances shall be 0.5%.
Cold-finished seamless steel pipe and electric resistance welded steel pipe 25 A or under 0.3mm

Under 3mm
0.3mm



3mm or over
10%

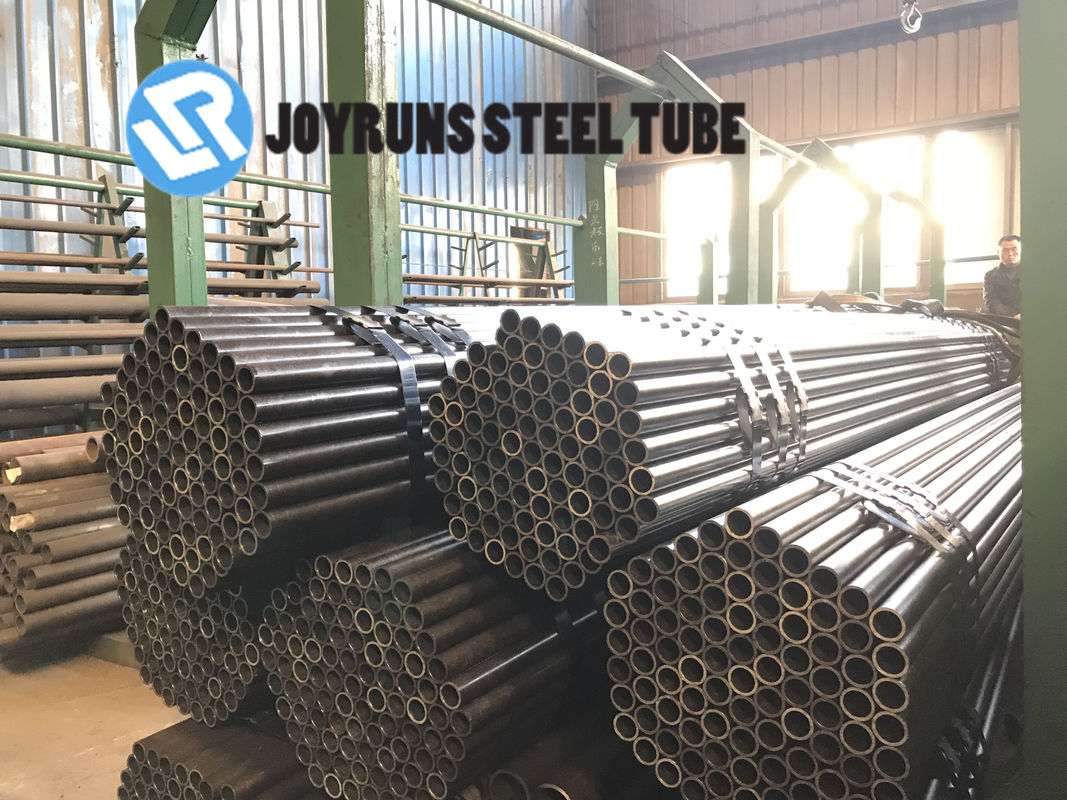

JIS 3454 Seamless Boiler Tubes STPG370 410 Carbon Seamless Pressure Tube 0  JIS 3454 Seamless Boiler Tubes STPG370 410 Carbon Seamless Pressure Tube 1  JIS 3454 Seamless Boiler Tubes STPG370 410 Carbon Seamless Pressure Tube 2



JIS 3454 Seamless Boiler Tubes STPG370 410 Carbon Seamless Pressure Tube 3  JIS 3454 Seamless Boiler Tubes STPG370 410 Carbon Seamless Pressure Tube 4  JIS 3454 Seamless Boiler Tubes STPG370 410 Carbon Seamless Pressure Tube 5





JIS 3454 Seamless Boiler Tubes STPG370 410 Carbon Seamless Pressure Tube 6
