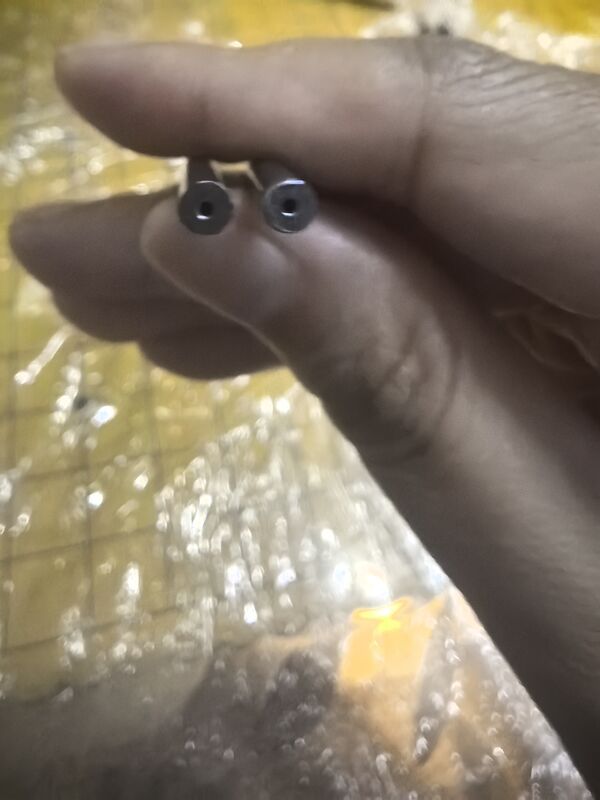

ASTM A519 1020+N Cold Drawn Seamless Steel Tubing OD 3.6mm ID 1mm | Precision Motorcycle Fuel Injection Tube

ASTM A519 1020+N Cold Drawn Seamless Precision Tubing – OD 3.6mm, ID 1mm for Motorcycle Fuel Injection Line

This precision cold drawn seamless steel tube complies strictly with ASTM A519 Standard for Seamless Carbon Steel Mechanical Tubing. The material grade is SAE 1020 carbon steel delivered under Normalized condition (1020+N). Finished dimension: Outer Diameter 3.6 mm, Inner Diameter 1 mm. It features ultra-tight dimensional tolerance, smooth inner surface and excellent roundness, specially developed and produced as fuel injection pipeline for motorcycles.

1. Basic Specification

• Executive Standard: ASTM A519
• Material Grade: 1020+N (SAE 1020, Normalized heat treatment)
• Production Process: Cold Drawn Seamless
• Nominal Dimension: OD 3.6 mm, ID 1 mm, Wall Thickness 1.3 mm
• Surface Condition: Clean and smooth inner & outer surface
• Dimensional Tolerance: Custom precision tolerance available per customer drawing
• Delivery Condition: Normalized (+N)

2. Chemical Composition (Heat Analysis, % by Weight)

Low carbon formulation achieves balanced ductility, bending performance and machinability without extra alloy additives.

3. Mechanical Properties (1020+N Normalized State, Minimum Values)

The normalized microstructure delivers stable mechanical performance, excellent vibration fatigue resistance, suitable for tube bending, flaring and other secondary forming processes during motorcycle assembly.

4. Heat Treatment: Normalizing & Annealing Specification

Marking 1020+N stands for Normalized treatment as official delivery condition:

1. Normalizing Process (+N) Heat tubing to 890–950 °C, maintain sufficient soaking time for uniform through-thickness heating, followed by air cooling to ambient temperature. Functions: Refine grain structure, eliminate residual stress generated in cold drawing, improve material toughness, stabilize mechanical properties and guarantee long-term dimensional stability for fuel delivery pipelines.
2. Optional Stress Relief Annealing If deep cold forming is required for subsequent processing, stress relief annealing can be carried out at 650–700 °C, hold and slow furnace cooling. It removes internal processing stress to prevent cracking during bending. Full annealing service is available upon special customer requirements.

Note: Normalizing (+N) instead of soft annealing is the designated delivery state for this motorcycle fuel injection tubing.

5. Application & Usage

This OD3.6mm × ID1mm ASTM A519 1020+N cold drawn seamless tubing is mainly used as motorcycle fuel injection pipe / fuel injector delivery tube.

Core advantages for motorcycle fuel supply systems:

✅ Seamless structure, effectively avoid leakage risk under fuel working pressure

✅ Consistent precision inner bore ensures stable fuel flow rate

✅ Homogeneous normalized grain structure, strong anti-vibration fatigue performance under engine operating environment

✅ Clean inner surface, no oxide impurities to block fuel injector nozzles

✅ Good formability for pipe bending, end flaring and connection assembly

Widely applicable to gasoline EFI motorcycles, scooters and two-wheeler fuel supply systems. We also accept customized small-bore precision seamless tubes for automotive fluid pipelines, micro hydraulic tubing and instrument piping.

6. Product Advantages

• Strictly manufactured according to ASTM A519 industrial specification • Cold drawn seamless manufacturing, no welding seam • Mass production capacity for special dimension OD3.6 mm × ID1 mm micro tubing • Stable normalized heat treatment for 1020+N material • Material Test Report (MTR) provided for each batch • Custom fixed lengths, surface treatment and end processing available
