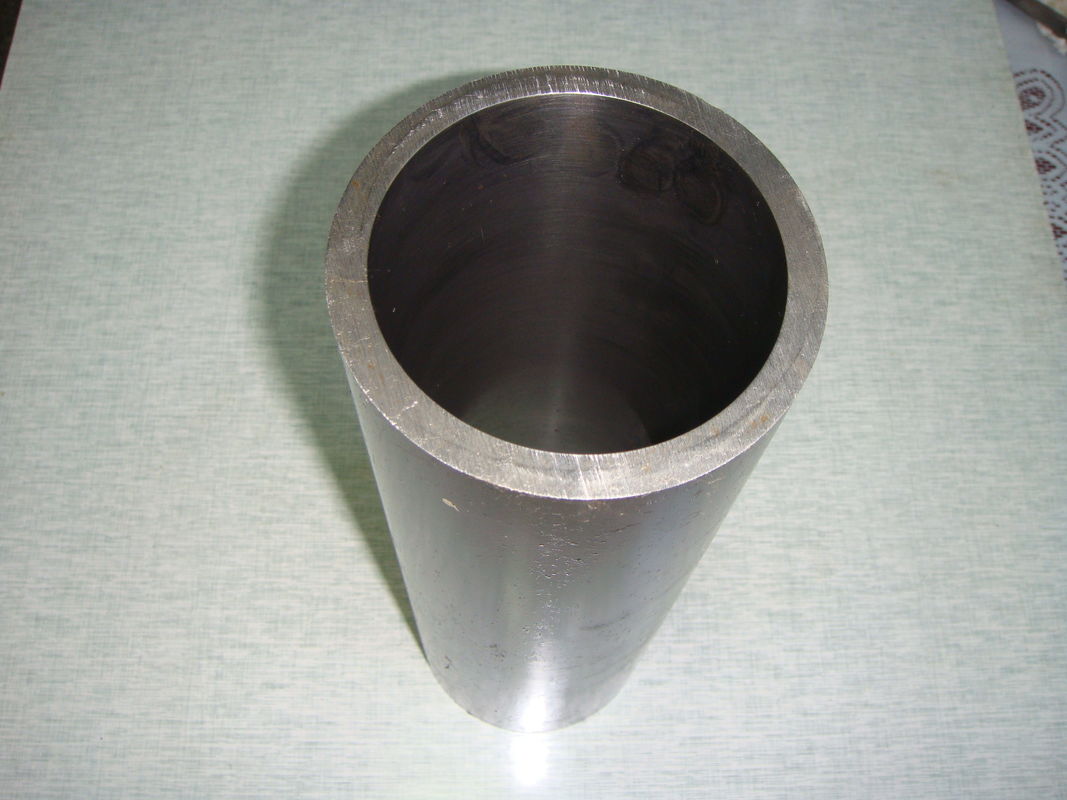

Seamless Precision Steel Tube
>
|
|
| Place of Origin | CHINA |
| Brand Name | JOYRUNS |
| Certification | ISO9001 |
| Model Number | 6MM TO 140MM |
ASTM A519 | SAE 1045 | Cold Drawn/Annealed | OD Range: 3mm – 120mm
As a professional manufacturer and supplier of precision steel tubes, we offer high-quality ASTM A519 SAE 1045 seamless tubes specifically engineered for automotive bushing applications. Our SAE 1045 tubes are cold drawn and thermally treated to deliver the optimal balance of strength, machinability, and wear resistance required for suspension bushings, engine mount sleeves, and chassis components.
Manufactured in strict compliance with ASTM A519/A519M standard (the standard specification for seamless carbon and alloy steel mechanical tubing), our SAE 1045 material is the preferred choice for automotive OEMs and Tier 1 suppliers worldwide
| Parameter | Specification |
|---|---|
| Standard | ASTM A519 / A519M |
| Steel Grade | SAE 1045 (UNS G10450) |
| Product Type | Seamless Cold Drawn Precision Tube |
| Size Range (OD) | 3 mm – 120 mm |
| Wall Thickness | Customizable upon request |
| Delivery Condition | Annealed / Stress Relieved / Cold Drawn |
The following chemical composition is in accordance with ASTM A519 requirements for SAE 1045 :
| Element | Percentage (%) |
|---|---|
| Carbon (C) | 0.43 – 0.48 |
| Silicon (Si) | 0.20 – 0.40 |
| Manganese (Mn) | 0.60 – 0.90 |
| Phosphorus (P) | ≤ 0.04 |
| Sulfur (S) | ≤ 0.05 |
| Copper (Cu) | ≤ 0.20 |
Note: Actual mill test certificates (MTC) are provided with each shipment to ensure full traceability.
Mechanical Properties
Our SAE 1045 tubes deliver consistent mechanical performance ideal for structural automotive components :
| Property | Value |
|---|---|
| Tensile Strength (σb) | ≥ 600 MPa |
| Yield Strength (σs) | ≥ 355 MPa |
| Elongation (δ5) | ≥ 16% |
| Reduction of Area (ψ) | ≥ 40% |
| Impact Energy (Akv) | ≥ 39 J |
| Hardness (as annealed) | ≤ 229 HBW |
To ensure optimal machinability and formability for bushing production, our SAE 1045 tubes are supplied in the annealed condition. The standard heat treatment process is as follows :
Annealing Temperature: 600°C – 650°C (Stress relief or full anneal)
Normalizing: 850°C (if required for specific grain refinement)
Quenching: 840°C
Tempering: 600°C
We can customize the heat treatment condition (normalized, quenched & tempered, or stress relieved) based on your final application requirements.
SAE 1045 is a medium-carbon steel that offers the following benefits for automotive bushing manufacturing :
| Feature | Benefit |
|---|---|
| High Strength | With a minimum yield strength of 355 MPa, it withstands high loads in suspension and chassis systems. |
| Excellent Machinability | Ideal for high-volume CNC machining of bushings, sleeves, and spacers. |
| Good Wear Resistance | Medium carbon content provides natural wear resistance for dynamic applications. |
| Consistent Hardness | Annealed condition (≤229 HBW) ensures uniform machining and extended tool life. |
| Weldability | Suitable for welding with proper preheating procedures. |
| Surface Finish | Cold drawn process offers smooth surface finish, reducing post-processing time. |
Our ASTM A519 SAE 1045 tubes are widely used in the following applications:
Suspension Bushings – Inner and outer sleeves for rubber/metal bonded bushings
Engine Mount Sleeves – Precision spacers for vibration dampening systems
Chassis Components – Structural sleeves and collars
Hydraulic Cylinders – Medium-duty cylinder barrels
General Machinery – Precision shafts, rollers, and spacers
Full Traceability: Mill test reports (EN 10204 3.1) included with every order.
Custom Sizes: Available from 3mm to 120mm OD, cut to your exact length.
Surface Options: Black, polished, or phosphate coated (for rubber bonding).
Global Shipping: Reliable export packaging and fast delivery worldwide.
Q: What is the minimum order quantity (MOQ)?
A: We offer flexible quantities. Please inquire for specific requirements.
Optimized for search: ASTM A519 SAE 1045 tube, SAE 1045 seamless tube, carbon steel bushing tube, ASTM A519 automotive bushing material, 1045 steel chemical composition, cold drawn seamless tube for bushings.
Contact our technical sales team today for pricing, stock availability, or free samples.
[Contact Sales] | [Request Mill Test Certificate Sample] | [Download Technical Datasheet (PDF)]
Q: Is SAE 1045 the same as CK45 or C45?
A: Yes, SAE 1045 is the U.S. standard equivalent to European CK45 (1.1191) and C45 grades. It is also comparable to JIS S45C .
Q: Can these tubes be used for rubber-to-metal bonding?
A: Absolutely. We can supply tubes with a phosphate-coated surface finish to enhance rubber adhesion for bonded bushing applications.
