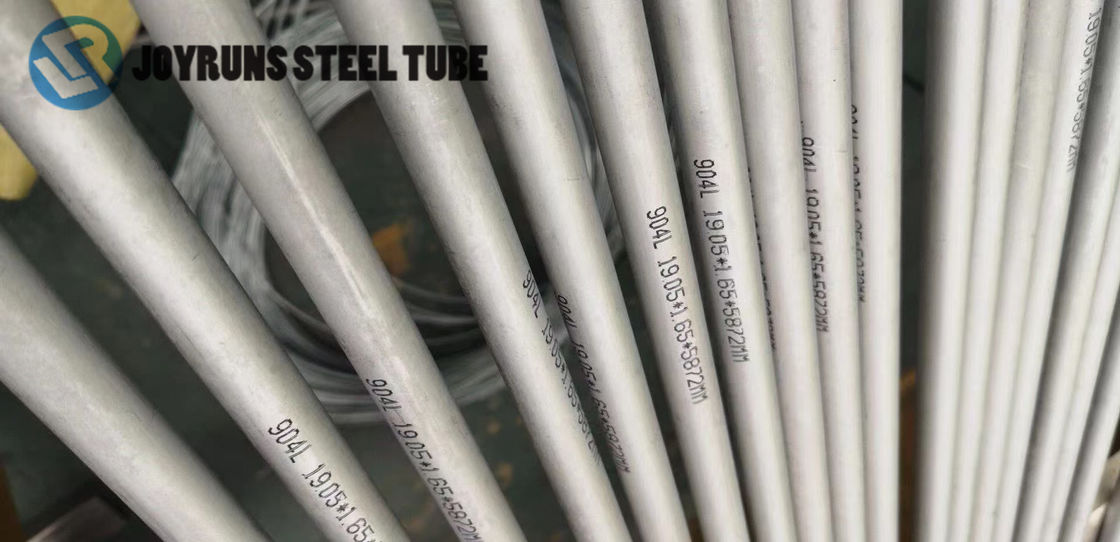

ASTM A959 N08904/904L Austenitic Stainless Steel Condenser Tube 19.05*1.65mm

ASTM A959 N08904/904L Austenitic Stainless Steel Condenser Tube 19.05*1.65mm

Product Details:

Place of Origin: Changzhou
Brand Name: Joyruns
Certification: ISO9001
Model Number: 6mm to 760mm

Payment & Shipping Terms:

Minimum Order Quantity: 2Tons
Packaging Details: plastic packing, end caps, wooden box packing
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 2000Tons/Month
Get Best Price Contact Now

Detail Information

Standard: ASTM A959-2004 Material: 904L/N08904
Application: Heat Exchanger Tube/condense Pipe Technique: Cold Drawn
Outer Diameter: 6-760mm Thickness: 0.1mm-100mm
Length: As Customer's Request Surface: Annealing,polished,Pickled
High Light:

Austenitic Stainless Steel Condenser Tube

,

19.05*1.65mm Stainless Steel Condenser Tube

,

ASTM A959 Austenitic Stainless Steel Pipe

Product Description

ASTM A269 904L Seamless austenitic stainless steel tube



904L (N08904,14539) super austenitic stainless steel contains 14.0-18.0% chromium, 24.0-26.0% nickel

and 4.5% molybdenum.904L super austenitic stainless steel is a kind of low carbon, high nickel and

molybdenum austenitic stainless steel. It has good activation and passivation conversion ability, excellent

corrosion resistance, good corrosion resistance in non-oxidizing acids such as sulfuric acid, acetic acid,

formic acid, phosphoric acid, good pitting corrosion resistance in neutral chloride ion medium, and good

resistance to crack corrosion and stress corrosion. Used in various concentration of sulfuric acid under

70 ℃, under ordinary conditions of any acetic acid concentration, any temperature, resistance and

formic acid and acetic acid in mixed acid corrosion resistance is also very good.



1904L Stainless Steel Tubing Chemical composition



Element Cr Ni Mo Cu Fe C Mn Si P S
Content (%) min 19 23 4 1 bal.
max 23 28 5 2   0.02 2 1 0.045 0.035



Grade

Tensile Strength (MPa) min

Yield Strength 0.2% Proof (MPa) min

Elongation (% in 50mm) min

Hardness

Rockwell B (HR B) max

Brinell (HB) max

904L

490

220

35

70-90 typical



2. SS 904L Tube Equivalent

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
904L N08904 904S13 X1NiCrMoCu25-20-5 1.4539 SUS 890L



3. Physical Properties of 904L SS Tube

Specific Heat (0-100°C) 450 J.kg-1.°K-1
Thermal Conductivity 11.5 W.m -1.°K-1
Thermal Expansion 15.8 μm/μm/°C
Modulus Elasticity 190 GPa
Electrical Resistivity 9.52 μohm/cm
Density 7.95 g/cm3



Hydraulic Testing & ECT Testing

ASTM A959 N08904/904L Austenitic Stainless Steel Condenser Tube 19.05*1.65mm 0    ASTM A959 N08904/904L Austenitic Stainless Steel Condenser Tube 19.05*1.65mm 1



Packing

 ASTM A959 N08904/904L Austenitic Stainless Steel Condenser Tube 19.05*1.65mm 2   ASTM A959 N08904/904L Austenitic Stainless Steel Condenser Tube 19.05*1.65mm 3  ASTM A959 N08904/904L Austenitic Stainless Steel Condenser Tube 19.05*1.65mm 4





ASTM A959 N08904/904L Austenitic Stainless Steel Condenser Tube 19.05*1.65mm 5
