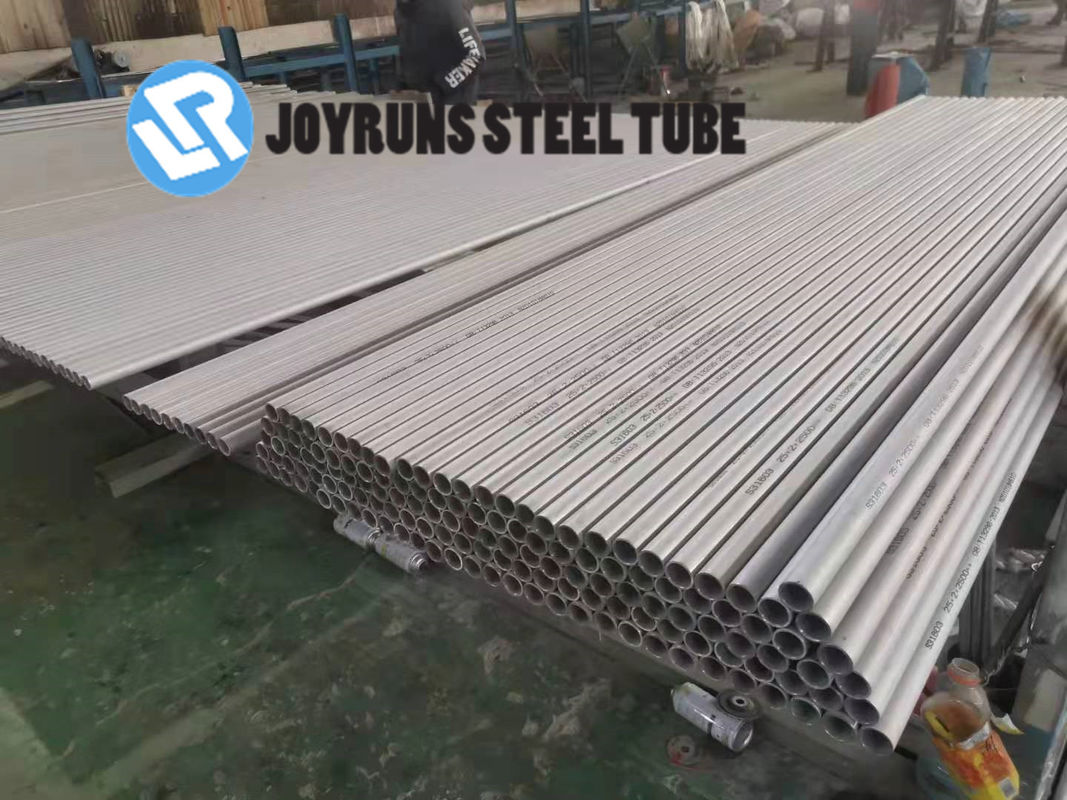

316 316L ASTM A269 Seamless SS Heat Exchanger Tubes 25.4*2.77mm

316 316L ASTM A269 Seamless SS Heat Exchanger Tubes 25.4*2.77mm

Product Details:

Place of Origin: Changzhou
Brand Name: Joyruns
Certification: ISO9001
Model Number: 25.4*2.77

Payment & Shipping Terms:

Minimum Order Quantity: 2Tons
Packaging Details: plastic packing, end caps, wooden box packing
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 2000Tons/Month
Get Best Price Contact Now

Detail Information

Outer Diameter: 6-760mm Thickness: 0.1mm-100mm
Length: As Customer's Request Standard: DIN,ASTM,AISI,JIS,GB
Grade: 201/202/304 /304L/316/316L321/310s/410/420/430/440/439ect Technique: Cold Drawn Seamless
Application: Condenser/heat Exchanger Tube Surface: Annealing,polished,Pickled
High Light:

25.4*2.77mm SS Heat Exchanger Tubes

,

A269 SS Heat Exchanger Tubes

,

316l stainless steel pipe 5.4*2.77mm

Product Description

ASTM A269/A213 SS TP316/316L Seamless heat exchanger Stainless Steel Tubes



TP316/316L Stainless Steel is a molybdenum steel possessing improved resistance to pitting by solutions containing chlorides and other halides.



SS 316/316L Heat Exchanger / Condenser are the types of heat exchanger/ condenser that are formed with austenitic stainless steel alloy in addition to it includes nickel- chromium-molybdenum content.



The heat exchanger /condenser exhibits good resistance to corrosion in a moderate environment. The inclusion of molybdenum content offers resistance to chloride pitting and general corrosion. Furthermore, it also provides higher stress to rupture, creep and tensile strength at high-temperature conditions.



SS 316/316L Condenser U Shaped Heat Exchanger Tubes Chemical Composition

Element

SS 316

SS 316L

C 0.08 max 0.035 max
Mn 2.0 max 2.0 max
Si 1.0 max 1.0 max
P 0.045 max 0.045 max
S 0.030 max 0.030 max
Cr 16.00 - 18.00 16.00 - 18.00
Mo 2.00 - 3.00 2.00 - 3.00
Ni 11.00 - 14.00 10.00 - 14.00
Fe 67.845 min 68.89 min



Mechanical & Physical Properties

Element

SS 316

SS 316L

Density

8.0 g/cm3

8.0 g/cm3

Melting Point

1400 °C (2550 °F)

1399 °C (2550 °F)

Tensile Strength

Psi – 75000, MPa – 515

Psi – 75000, MPa – 515

Yield Strength (0.2%Offset)

Psi – 30000, MPa – 205

Psi – 30000, MPa – 205

Elongation

35 %

35 %



Hydraulic Testing & ECT Testing

316 316L ASTM A269 Seamless SS Heat Exchanger Tubes 25.4*2.77mm 0     316 316L ASTM A269 Seamless SS Heat Exchanger Tubes 25.4*2.77mm 1



Producing shop

316 316L ASTM A269 Seamless SS Heat Exchanger Tubes 25.4*2.77mm 2    316 316L ASTM A269 Seamless SS Heat Exchanger Tubes 25.4*2.77mm 3



Packing

316 316L ASTM A269 Seamless SS Heat Exchanger Tubes 25.4*2.77mm 4  316 316L ASTM A269 Seamless SS Heat Exchanger Tubes 25.4*2.77mm 5  316 316L ASTM A269 Seamless SS Heat Exchanger Tubes 25.4*2.77mm 6



316 316L ASTM A269 Seamless SS Heat Exchanger Tubes 25.4*2.77mm 7
