Place of Origin | Changzhou |
Brand Name | Joyruns |
Certification | ISO9001,ROHS |
Model Number | 12.7*1 |

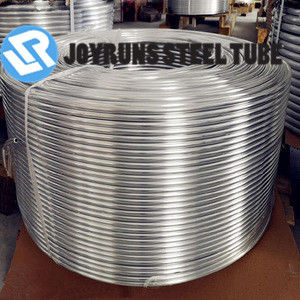

ASTM B210 1070 Aluminium coil tube for Evaporator
The surface of 1070 aluminum is difficult to be corroded due to its dense oxide protective film. It is often used in the manufacture of chemical reactors, medical devices, refrigeration units, petroleum refining units, oil and gas pipelines, etc.
Aluminum tube for the HVAC&R industry. the surface of the coiled tube is smooth, no pores, no wear, and nitrogen is maintained. aluminum tubes are especially suited to long production runs for industrial applications. Mainly be used on the air-conditioner, freezer, refrigeration, Condenser, intercooler, evaporator, warm wind movement, air conditioner pipeline, car radiator, etc.
1 . Alloy: ASTM B241 1050/1060/1070
2. Temper: O/H12/H14/H16/H22/H24/H26/H112/F
3. Thickness: 0.7mm--1.5mm
4. Diameter: according to customer’s requirements
5. Tolerance: +/- 0.05mm
6. Application: air conditioner, refrigerator, roll-bond evaporator, heat exchanger, oven gas, condenser, and intercooler and so on.
7. Package: Wooden pallets or boxes suitable for long-distance sea transportation, it is can be customized by clients.
A1050 Aluminium Chemical Composition | |||||||||
Al | Si | Cu | Mg | Zn | Mn | Ti | V | Fe | Others |
99.5~100 | 0~0.25 | 0~0.05 | 0~0.05 | 0~0.05 | 0~0.05 | 0~0.03 | 0~0.05 | 0~0.40 | 0~0.03 |
A1060 Aluminium Chemical Composition | |||||||||
Al | Si | Cu | Mg | Zn | Mn | Ti | V | Fe | Others |
99.6-100 | 0~0.25 | 0~0.05 | 0~0.03 | 0~0.05 | 0~0.03 | 0~0.03 | / | 0~0.35 | |
A1070 Aluminium Chemical Composition | |||||||||
Al | Si | Cu | Mg | Zn | Mn | Ti | V | Fe | Others |
99.7~100 | 0~0.2 | 0~0.04 | 0~0.03 | 0~0.04 | 0~0.03 | 0~0.03 | 0~0.05 | 0~0.25 |
Physical Property of 1050 1060 1070 aluminum tube pipe | ||||||
Alloy | Temper | Wall thickness /mm |
Room temperature Test Result | |||
Tension Strength/MPa | Yield Strength/MPa | Elongation/% | ||||
A50mm | A | |||||
Not less than | ||||||
1050 | O,H111 | All | 60 ~ 100 | 20 | 25 | 23 |
H112 | All | 60 | 20 | 25 | 23 | |
F | All | - | - | - | - | |
1060 | O | All | 60 ~ 95 | 15 | 25 | 22 |
H112 | All | 60 | - | 25 | 22 | |
1070 | O | All | 60 ~ 95 | - | 25 | 22 |
H112 | All | 60 | 20 | 25 | 22 |
