| Place of Origin: | CHANGZHOU, CHINA |
|---|---|
| Brand Name: | Joyruns |
| Certification: | ISO9000 |
| Model Number: | 5mm to 200mm |
| Minimum Order Quantity: | 5 tons per size |
| Price: | Negotiable |
| Packaging Details: | Plastic packing, oiling, wooden box |
| Delivery Time: | 30DAYS |
| Payment Terms: | TT OR LC |
| Supply Ability: | 5000T PER MONTH |
| Type: | Admiralty Brass Seamless Tubes Tubing | OD. Range: | 10mm – 168mm |
|---|---|---|---|
| Wall Thickness: | 1mm-36mm | Length: | Max Length 24M |
| Standard: | JIS H3300 /ASTM B111/SAME B111 | Grade: | C4430T/C44300 |
| High Light: | ASTM B111 C44300,25.4*1.25MM Seamless Carbon Steel Pipe,SAME B111 Seamless Carbon Steel Pipe |
||

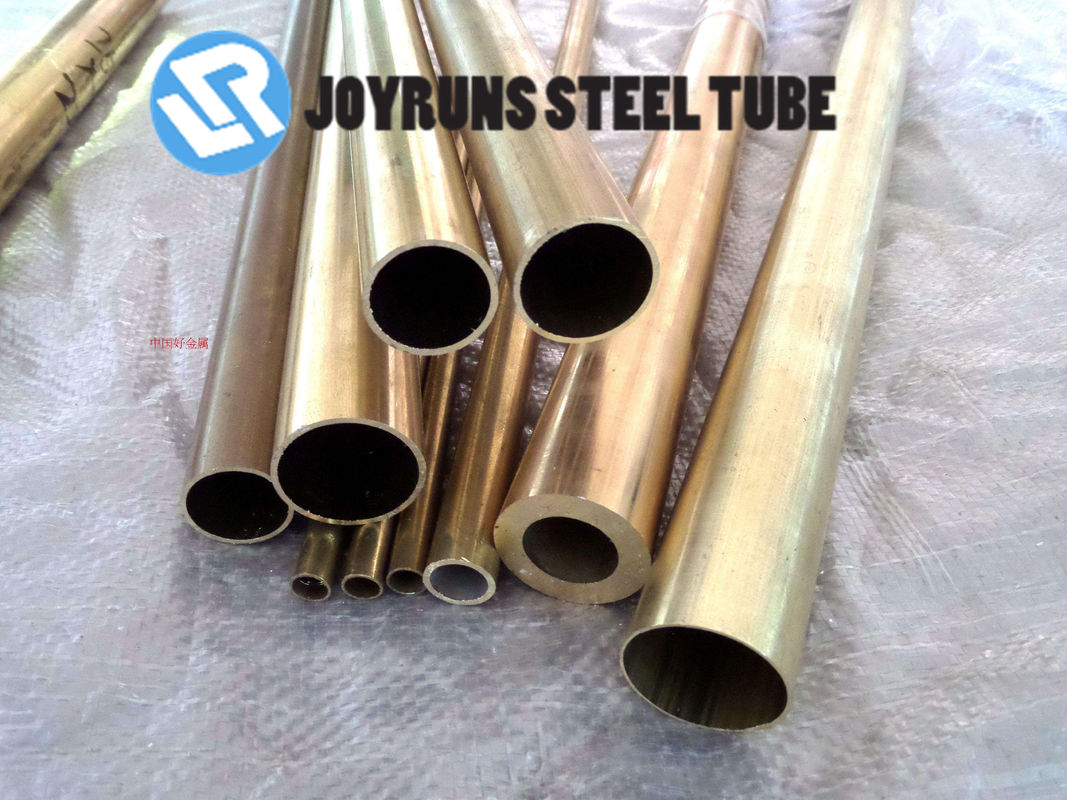

ASTM B111 C44300 Seamless Admiralty Brass Pipes and Tubes
ASTM B111 ASME SB 111 C44300 Admiralty Brass is ideal for heat exchanger tubes. Normally made to order to meet engineering requirements, you will find this alloy oftentimes used in oil and gas applications that also require its non-corrosive properties. C44300 and C68700 have good corrosion resistance.
Specifications:
|
Material Designation |
Corresponding Material Symbol |
||||
|
GB/T8890 |
ASTM B111 |
BS2871 |
JIS H3300 |
DIN1785 |
|
|
|
|
C70600 |
CN102 |
C7060 |
CuNi10Fe1Mn |
|
BFe30-1-1 |
C71500 |
CN107 |
C7150 |
CuNi30Mn1Fe |
|
|
(BFE30-2-2) |
C71640 |
CN108 |
C7164 |
CuNi30Fe2Mn2 |
|
|
BFe5-1.5-0.5) |
C70400 |
- |
- |
- |
|
|
B7 |
- |
- |
- |
- |
|
|
|
HAL77-2 |
C68700 |
CZ110 |
C6870 |
CuZn20AL2 |
|
|
|
C44300 |
CZ111 |
C4430 |
CuZn28Sn1 |
|
|
Hsn 70-1 B |
- |
- |
- |
- |
|
Hsn 70-1 AB |
- |
- |
- |
- |
|
|
|
H68A |
- |
CZ126 |
- |
- |
|
STANDARD |
ASTM B 111 |
BS 2871 / PART 3 |
DIN 17660/1785 |
NFA 51102 |
JIS H3300 |
| Cu | 70,0 - 73,0 | 70,0 -73,0 | 70,0 - 72,5 | 70,0 - 73,0 | 70,0 - 73,0 |
| Sn | 0,90 - 1,20 | 1,00 - 1,50 | 0,90 - 1,30 | 0,90 - 1,20 | 0,90 - 1,20 |
| Pb | 0,07 max. | 0,07 max. | 0,07 max. | 0,07 max. | 0,07 max. |
| Ni | - | - | 0,10 max. | - | - |
| Fe | 0,06 max. | 0,06 max. | 0,07 max. | 0,06 max. | 0,06 max. |
| Zn | Rem. | Rem. | Rem. | Rem. | Rem. |
| As | 0,02 - 0,06 | 0,02 - 0,06 | 0,02 - 0,035 | 0,02 - 0,06 | 0,02 - 0,06 |
| P | - | - | 0,01 max. | - | - |
| Mg | - | - | 0,005 max. | - | - |
| Mn | - | - | 0,10 max. | - | - |
| Total Impurities | - | 0,30 max. | Others Total | 0,03 max. | - |
| Yield Strength | 105 min. (061) | - | 140 - 220 (F36) | - | - |
| N/mm2 | - | - | 100 - 170 (F32) | - | - |
| Tensile Strength | 310 min. (061) | - | 360 min. (F36) | - | 314 min. |
| N/mm2 | - | - | 320 min. (F32) | - | - |
| Elongation (%) | - | - | 45 min. (F36) | - | 30 min. |
| Hardness Hv5 | - | 80 - 105 | - | 80 - 120 | - |
| Grain Size (mm) | 0,010 - 0,045 | 0,050 max. | 0,010 - 0,050 | 0,010 - 0,045 | 0,010 - 0,045 |
